Products Photovoltaic Arrestors

Silicon Oxide Arrestor for Photovoltaic and Other Limited Current DC Applications.

Specifications

Type of Design Silicon Oxide Varistor
Maximum number of surges Unlimited
Response time one milliamp test 5 nanoseconds
Response time to clamp 10,000 amps 10 nanoseconds
Response time to clamp 50,000 amps 25 nanoseconds
Maximum Current

LA302DC
60,000 amps

LA602DC
100,000 amps

LA 302DC / LA 302R

$ Pricing Info

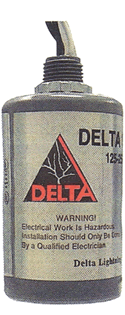

LA 602DC

$ Pricing Info



Delta silicon arrestors comply with all requirements of photovoltaic systems.

  • Deltas do not draw continuous current.
  • Deltas consume no power during stand-by.
  • Delta's clamping voltage does not change with age.
  • Delta arrestors fail open circuit to permit continued system operation.
  • Deltas contain no current limiting fuses or resistance.
  • Deltas are fire resistant.
