Delta Surge Arrestor
 Helps prevent Lightning & Surge Damage
Replaces: Surge Suppressors, Surge Protectors, and other Surge Protective Devices (SPD)


Specifications
Type of Design SPD Metal Oxide Varistor
Firing Voltage
Sparkover Voltage
VPR Voltage		 L-L 480V
L-N-240 V
Maximum Current L-N 20,000 AMPS
Maximum Joules L-N 300 Joules
Tested to NEMA C62.11
Category B & C and Type 1 & 2
Leads 18" #12 THHN
Response Time 5 nanoseconds
SCCR 10k Amps
Locknut and Washer furnished 1/2" Nipple Washer & Locknut

MO 302

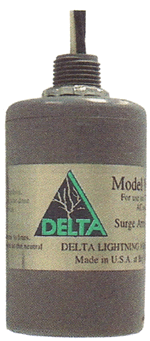

MO 303

Weatherproof Enclosure
Dimensions:
2-1/4" High,
2-1/4" Diameter

MO302
For 120 / 250 VAC, Single Phase.
MO302DC
For 175 / 350 VDC, for PV and other DC systems

Weatherproof Enclosure
Dimensions:
4-1/2" High,
2-1/4" Diameter

For 120 / 208-240 VAC, Three Phase.

MO302 Pricing

MO303 Pricing


DELTA LIGHTNING ARRESTORS,™ INC. P.O. BOX 750
BIG SPRING, TX 79721
432-267-1000
www.deltala.com
[email protected]

INSTALLATION:

Fasten arrestor in place. Use a Delta mounting bracket, part # MB, a pipe strap, or a knockout hole. Connect the black wires to the hot lines at any convenience point load-side of an existing fuse or circuit breaker. Connect the white wire to an existing ground system, the grounded metal frame work of the equipment to be protected, or make a ground source per NEC Article 250.

Electrical work is hazardous. Bad connections can result in fire, injury or death. Installation must only be done by qualified electricians.

In the event that a lightning discharge is so powerful that something has to be destroyed, the arrestor will take the damage. When sufficient heat and stress causes failure, a one inch hole will open at the bottom of the enclosure. Hot silica and plastic bits will be expelled. Installing the arrestor in any approved electrical box will prevent accidental contact with a damaged unit.
